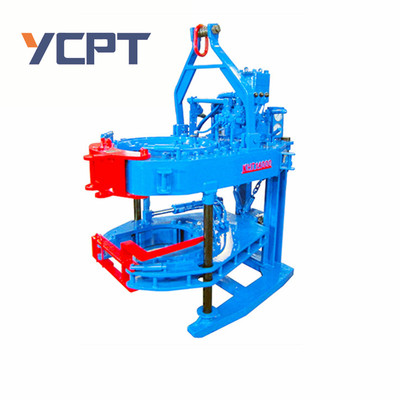

Casing tong KHT Series
TheCasing Power Tong is used to make up and break out for casing operation in oilfields. It has greatly reduced the labor of worker, enhanced connection qualityof thread and diminished accidents in inappropriate casing operation. The powertong has the following features :
Features:
1.Hightorque
2.Brakebelt assembly, easy to operate and convenient to maintain and replace.
3.Opengear supporting structure, improving the strength.
4.Highstrength steel plate used on the shell.
5.Withhydraulic torque indicator and torque control system installation interface(optional).
6.Lowstress components for C.R.A casing (optional).
Model | KHT7625 | KHT9625 | KHT13625 | KHT14000 |
Range of Master Tong | Ф73-194 2 7/8”-7 5/8” | Ф73-245 2 7/8”-9 5/8” | Ф101-346 4”-13 5/8” | Ф101-356 4”-14” |
Range of Backup Tong | Ф73-219 2 7/8”-8 5/8” | Ф73-267 2 7/8”-10 1/2” | Ф101-394 4”-15 1/2” | Ф101-394 4”-15 1/2” |
High Gear Rated of Torque | 7000 N.m 5000 ft.lbs | 3600 N.m 2700 ft.lbs | 8400 N.m 6200 ft.lbs | 13500 N.m 10000 ft.lbs |
Low Gear Rated of Torque | 34000 N.m 25000 ft.lbs | 34000 N.m 25000 ft.lbs | 42000 N.m 31000 ft.lbs | 100000 N.m 75000 ft.lbs |
High Gear Rated Speed | 39 RPM | 65 RPM | 42 RPM | 24 RPM |
Low Gear Rated Speed | 8 RPM | 6.5 RPM | 8.4 RPM | 3 RPM |
Rated Operation Pressure | 14Mpa 2000PSI | 14Mpa 2000PSI | 14Mpa 2000PSI | 17.2Mpa 2500PSI |
Rated Flow | 150 LPM 40 GPM | 150 LPM 40 GPM | 150 LPM 40 GPM | 187.5 LPM 50 GPM |
Master Tong’s Dimension:L*W*H | 1350*660*1190 53”*26”*47” | 1500*790*1045 59”*31”*41.1” | 1508*857*1194 59.4”*33.8”*47” | 1750*1080*1240 69”*42.5”*48.8” |
Combined Tong’s Dimension:L*W*H | 1350*660*1750 53”*26”*69” | 1500*790*1750 59”*31”*69” | 1508*1082*1900 59.4”*42.6”*74.8” | 1750*1080*2050 69”*42.5”*80.7” |
Master Tong’s Weight | 550kg 1210lbs | 800kg 1760lbs | 650kg 1433lbs | 1500kg 3300lbs |
Combined Tong’s Weight | 825kg 1820lbs | 1220kg 2680lbs | 1250kg 2750lbs | 2150kg 4730lbs |
