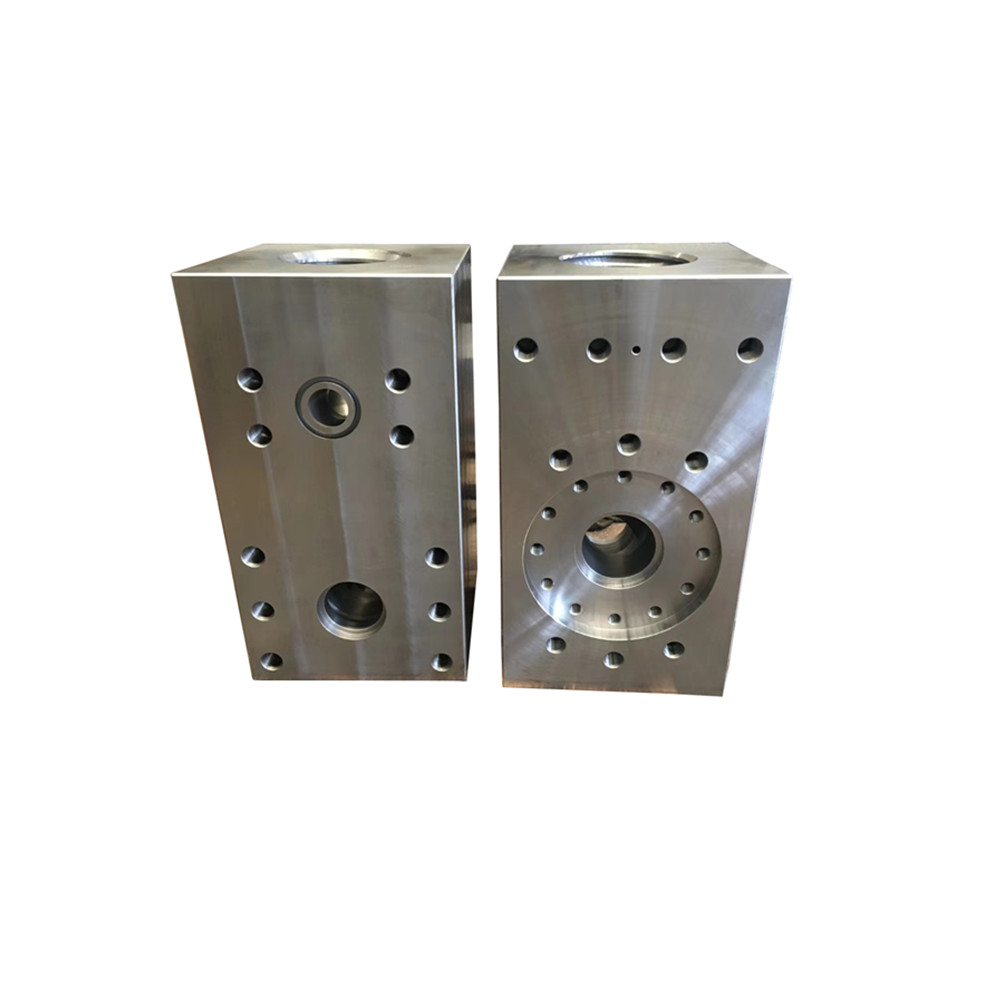

Our fluid end modules are completely interchangeable with the OEM, such as National, Emsco, Gardner Denver, Bomco, Ideco, Oilwell...triplex mud pumps.
Manufactured to the highest quality, the best performance and durability.
They can come in one or two piece configuration with design pressure up to 7,500 psi.
We also offer two piece “L” shaped fluid ends modules.
The two-piece cylinder fluid end modules permit quick removal and installation.
The L-shaped two-piece fluid end was adopted into the market , because it was an obvious improvement over one piece modules . Since the suction module is separate from the discharge module, it is possible to replace the suction module when it wears out instead of replacing the entire fluid end.
Material: high quality alloy steel 4135 with strict forging and heat treatment processes
Features:
Completely interchangeable with OEM
Premium forged alloy steel
Made on CNC boring mills
Strict heat treatment
Rigid inspection
We can provide spare parts for the following series of drilling mud pump:
Bomco/Emsco | F-1300 | FB-1300 | F-1600 | FB-1600 | F1600HL | F2200HL | F-1000 | F-800 | F-500 |
National | 7P50 | 8P80 | 9P100 | 10P130 | 12P160 | 14P220 |
|
|
|
Gardner Denver | PZ7 | PZ8/9 | PZ10/11 | FK-FXK | FY-FXX | FG-FXG | FF-FXP | KG- KXG | FQ- FXQ |
Oilwell | A-850-PT | A-1100-PT | A-1400-PT | A-1700-PT |
|
|
|
|
|
Russian | UNBT-950 | UNB-600 | 8T-650 | UNBT1180L | 3PN1600 |
|
|
|
|
Ideco | T-500 | T-800 | T-1000 | T-1300 | T-1600 |
|
|
|
|
Wirth | TPK1000 | TPK1600 | TPK2000 |
|
|
|
|
|
|
|
LS National | 3NB-500C | 3NB1000C | 3NB1300C | 3NB1600 | 3NB800 | 3NB1300A |
|
|
|
Drillmec | 9T1000 | 12T1600 |
|
|
|
|
|
|
|
OTHER BRAND: HONGHUA, QINGZHOU, WETHERFORD |
