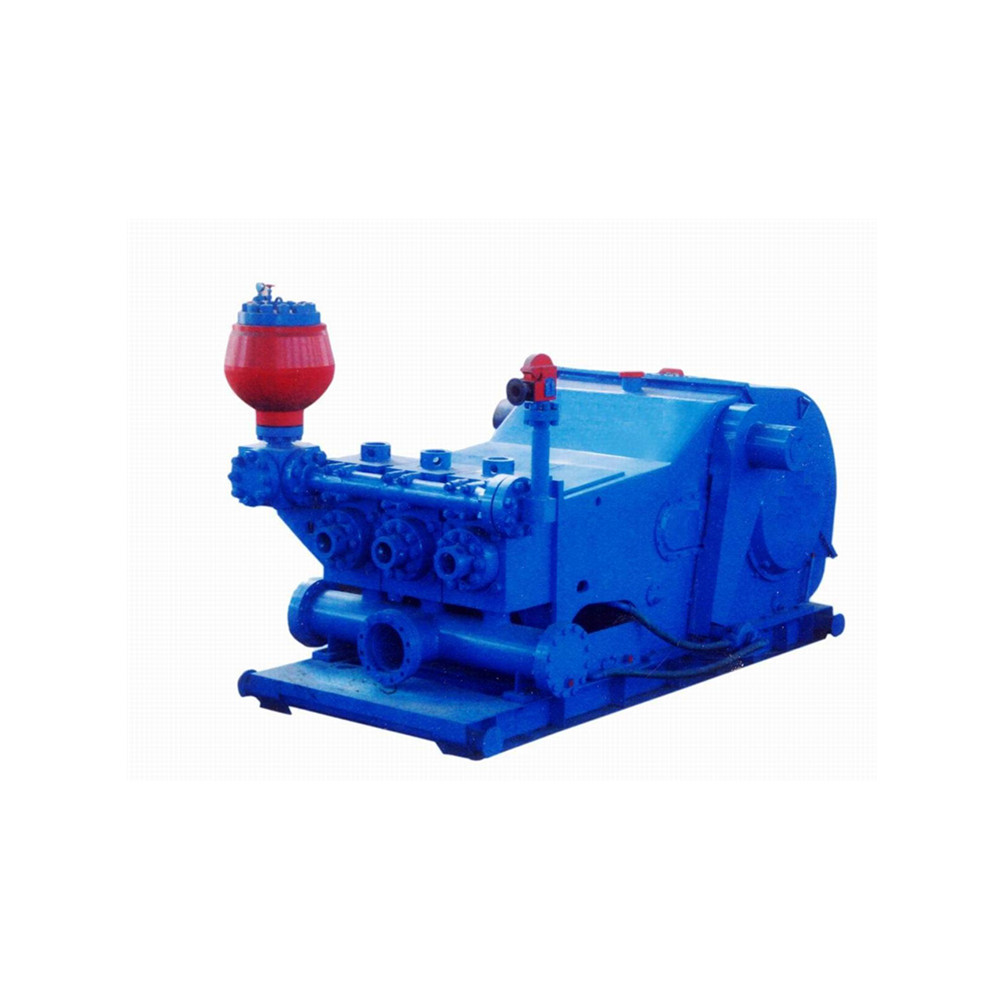

We can provide spare parts for the following series of drilling mud pump:
1. Mud Pump, F-1300 and F-1600
| Rated Pressure (MPA) |
Stroke Rate (RPM) | Cylinder Diameter (MM) | Φ180 | Φ170 | Φ160 | Φ150 | Φ140 | Φ130 |
F-1300 | 18.5 | 20.7 | 23.4 | 26.6 | 30.5 | 34.3 |
F-1600 | 22.7 | 25.5 | 28.8 | 32.7 | 34.3 | 34.3 |
Rated Power | Capacity (L/S) |
F-1300 | F-1600 |
KW (HP) | KW (HP) |
130 | 1036 (1408) | 1275 (1733) | 50.42 | 44.97 | 39.83 | 35.01 | 30.5 | 26.3 |
120 | 956 (1300) | 1176 (1600) | 46.54 | 41.51 | 36.77 | 32.32 | 28.15 | 24.27 |
110 | 876 (1192) | 1078 (1467) | 42.66 | 38.05 | 33.71 | 29.62 | 25.81 | 22.25 |
100 | 797 (1083) | 980 (1333) | 38.78 | 34.59 | 30.64 | 26.93 | 23.46 | 20.23 |
90 | 717 (975) | 882 (1200) | 34.9 | 31.13 | 27.58 | 24.24 | 21.11 | 18.21 |
2. Mud Pump, F-1000
Stroke Rate |
| Cylinder Diameter (MM) and Rated Pressure (MPA) |
RPM | Rated Power | 170 | 160 | 150 | 140 | 130 | 120 | 110 |
|
| 16.4 | 18.5 | 21.1 | 24.2 | 28 | 32.9 | 34.3 |
| HP | Capacity (L/S) |
150 | 1072 | 43.24 | 38.3 | 33.66 | 29.33 | 25.29 | 21.55 | 18.1 |
140※ | 1000 | 40.36 | 35.75 | 31.42 | 27.37 | 23.6 | 20.11 | 16.9 |
130 | 929 | 37.47 | 33.2 | 29.18 | 25.43 | 21.91 | 18.67 | 15.69 |
120 | 857 | 34.59 | 30.64 | 26.93 | 23.46 | 20.23 | 17.24 | 14.48 |
110 | 786 | 31.71 | 28.09 | 24.69 | 21.51 | 18.54 | 15.8 | 13.28 |
100 | 714 | 28.83 | 25.53 | 22.44 | 19.55 | 16.86 | 14.36 | 12.07 |
3. Mud Pump, F-800
Stroke Rate |
| Liner Diameter (MM) and Rated Pressure (MPA) |
RPM | Rated Power | 170 | 160 | 150 | 140 | 130 | 120 | 110 | 100 |
13.6 | 15.4 | 17.5 | 20.1 | 23.3 | 27.3 | 32.5 | 34.3 |
| HP | Capacity (L/S) |
160 | 853 | 41.51 | 36.77 | 32.32 | 28.15 | 24.27 | 20.68 | 17.38 | 14.36 |
150※ | 800 | 38.92 | 34.47 | 30.3 | 26.39 | 22.96 | 19.39 | 16.29 | 13.47 |
140 | 747 | 36.32 | 32.17 | 28.28 | 24.63 | 21.24 | 18.1 | 15.21 | 12.57 |
130 | 693 | 33.73 | 29.88 | 26.26 | 22.87 | 19.72 | 16.81 | 14.12 | 11.67 |
120 | 640 | 31.13 | 27.58 | 24.24 | 21.11 | 18.21 | 15.51 | 13.03 | 10.77 |
110 | 587 | 28.54 | 25.28 | 22.22 | 19.35 | 16.69 | 14.22 | 11.95 | 9.87 |
4. Mud Pump, F-500
Stroke Rate | Rated Power | Liner Diameter (MM) and Rated Pressure (MPA) |
170 | 160 | 150 | 140 | 130 | 120 | 110 | 100 |
9.3 | 10.5 | 11.9 | 13.7 | 15.9 | 18.6 | 22.2 | 26.8 |
HP | Capacity (L/S) |
170 | 515 | 36.75 | 32.56 | 28.61 | 24.93 | 21.49 | 18.31 | 15.39 | 12.72 |
165※ | 500 | 35.67 | 31.6 | 27.77 | 24.19 | 20.86 | 17.77 | 14.93 | 12.34 |
150 | 455 | 32.43 | 28.73 | 25.25 | 21.99 | 18.96 | 16.16 | 13.58 | 11.22 |
140 | 424 | 30.27 | 26.81 | 23.56 | 20.53 | 17.7 | 15.08 | 12.67 | 10.47 |
130 | 394 | 28.11 | 24.9 | 21.88 | 19.06 | 16.44 | 14 | 11.77 | 9.73 |
120 | 364 | 25.94 | 22.98 | 20.2 | 17.6 | 15.17 | 12.93 | 10.86 | 8.98 |
110 | 333 | 23.78 | 21.07 | 18.52 | 16.13 | 13.91 | 11.85 | 9.96 | 8.23 |
