Product Description

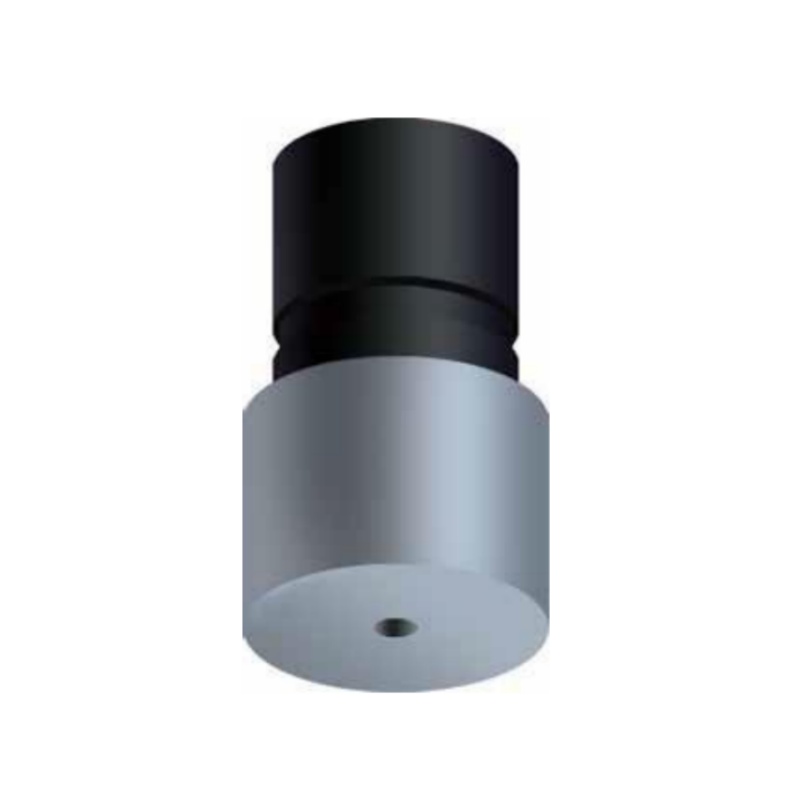

The QM lead die is used to mark the fish to determine the geometry of the top of the fish, so as to select the appropriate processing tool.
Product Parameter
Model | OD.mm | ID.mm | Joint Connection | Casing/Tubing size | PN. |
QM79 | 79 | 12 | NC23 | 4 | X03-7900 |
QM89 | 89 | 12 | NC26 | 4 1/2 | X03-8900 |
QM98 | 98 | 12 | NC26 | 5 | X03-9800 |
QM110 | 110 | 12 | NC31 | 5 1/2 | X03-11000 |
QM146 | 146 | 20 | NC38 | 7 | X03-14600 |
QM203 | 203 | 25 | NC50 | 9 5/8 | X03-20300 |
QM305 | 305 | 38 | 6 5/8REG | 13 3/8 | X03-30500 |
